Melamine Tableware Moulding Machine

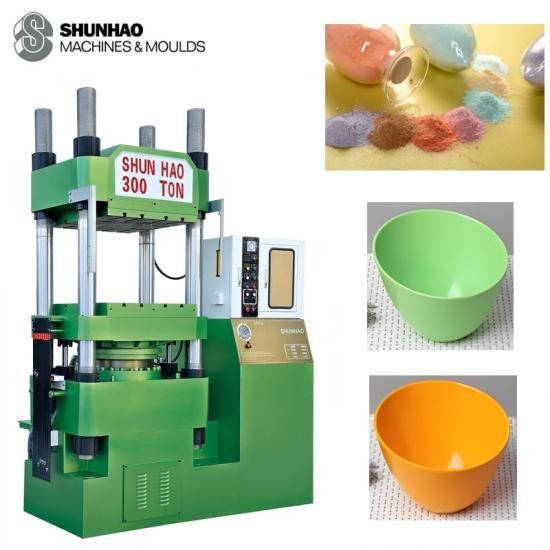

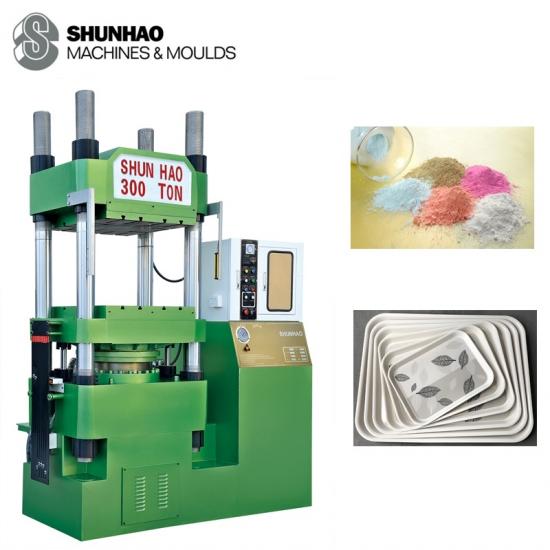

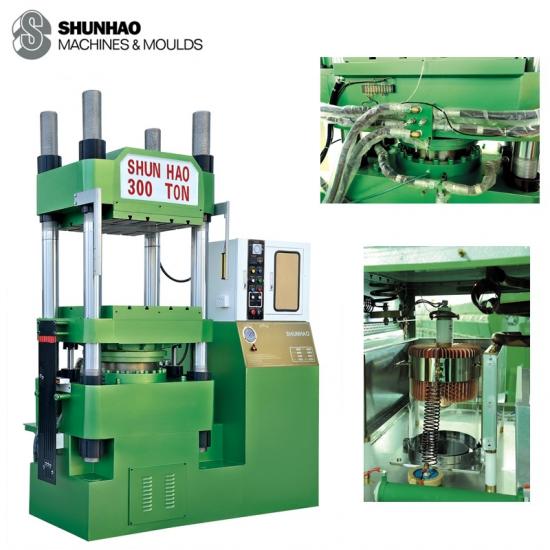

300 Tons Melamine Molding Machine Crockery Making Equipment

300 Tons Melamine Molding Machine Crockery Making Equipment

Shunhao Brand Melamine Crockery Press Machine: Easy and automatic operation, without noise, suitable for production of melamine tableware.

  • Brand:

    Shunhao
  • Payment:

    LC, TT
  • product origin:

    China
  • Color:

    Green
  • shipping port:

    Guangzhou
  • Trainning Service:

    Yes
  • Support Service:

    Life-time Service
  • Product Detail

Shunhao Machines Factory has manufactured melamine molding equipment for over two decades. With advanced Taiwanese technology and a commitment to precision engineering, Shunhao has become a trusted name in the industry. Shunhao’s skilled technicians, many with years of experience, work closely with clients to customize solutions that address specific production needs, whether it’s for small-scale workshops or large manufacturing plants. As the demand for melamine-based products continues to grow globally, Shunhao factory remains dedicated to innovation, regularly updating its technology and product lines to stay at the forefront of the industry.

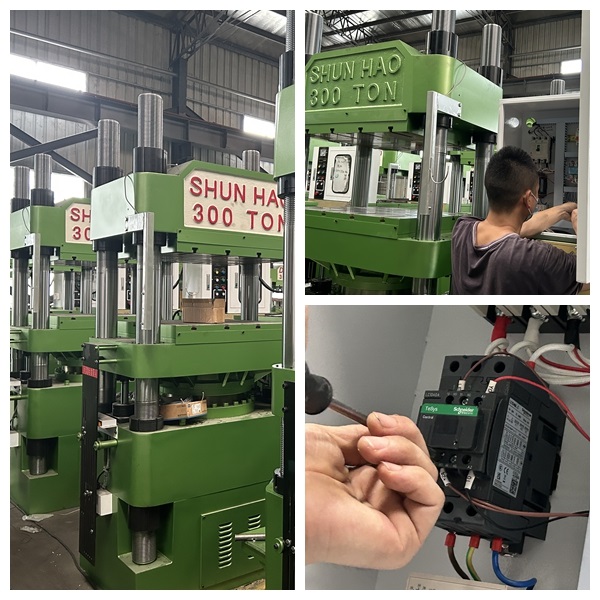

Shunhao tableware melamine compression machine

Technical Parameters of 300 Tons Single Color Shunhao Brand Melamine Molding Machine

1 Model

DTB 300A

DTB 300B

DTB 300C

2 Main Cylinder Nominal Pressure:

300Tons.

300Tons.

300Tons.

3 Maximum Working Pressure:

210kg/cm2.

210kg/cm2.

210kg/cm2.

4 Main Cylinder Piston Diameter:

Ø450mm.

Ø450mm.

Ø450mm.

5 Main Cylinder Working Stroke:

600mm.

500mm.

550mm.

6 Adjustable Table Distance:

500~1060mm.

500~900mm.

500~960mm.

7 Heating Plate Size:

760*720mm.

800*760mm.

900*860mm.

8 Heating Plate Material:

45#

45#

45#

9 Tension Column (Heat Treatment Grinding):

Ø120*2400mm

Ø120*2300mm

Ø120*2350mm

10 Oil Hydraulic Pump:

21Mpa.

21Mpa.

21Mpa.

11 Motor Specifications:

15HP

15HP

15HP

12 Heating Sheet Total Power:

12.4KW

17.2KW

19.6KW

13 Machine Total Power:

23.4KW

28.2KW

30.6KW

14 Machine Size(length * width * height):

2.25*1.45*2.96 M

2.27*1.45*2.65 M

2.5*1.48*2.85 M

15 Mechanical Weight:

6200KGS

6700KGS

7500KGS

■ PS: Specifications subject to change without notice

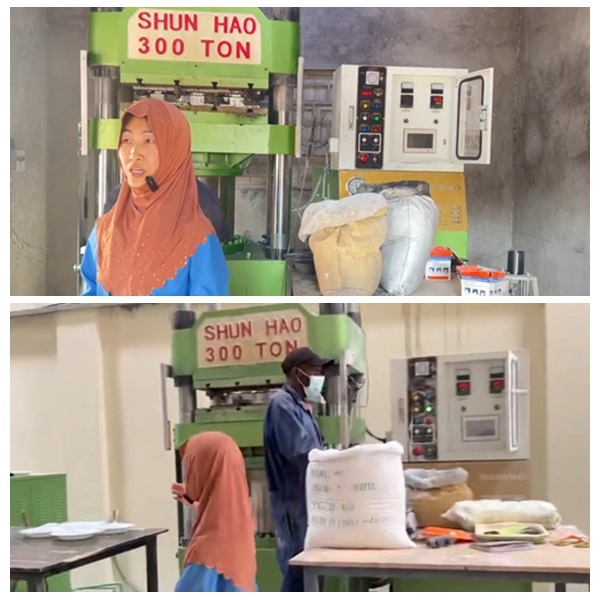

Shunhao Machines and Moulds Factory

Pre-operation check for Melamine Compression Machine:

  1. Check the oil level gauge to determine whether the oil level in the reservoir exceeds 80% of the tank's capacity or falls below 70%.
  2. If any situation requiring an emergency stop arises during operation, pressing the emergency stop switch immediately will bring the machine to an instant halt (pressing only the motor stop switch is ineffective).
  3. Verify whether the clearance between the upper and lower molds is tight and uniform, and check if the load distribution across the supporting pillars is even.
  4. All moving parts of the machine require proper lubrication.
  5. It must be verified that there are no leaks in the cooling water piping system and that the water flow is sufficient to maintain normal operational efficiency.
